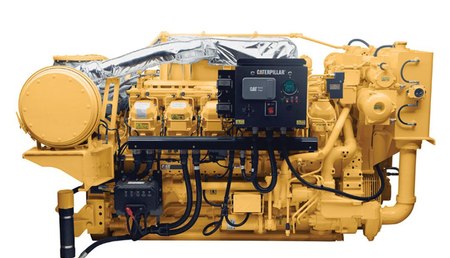

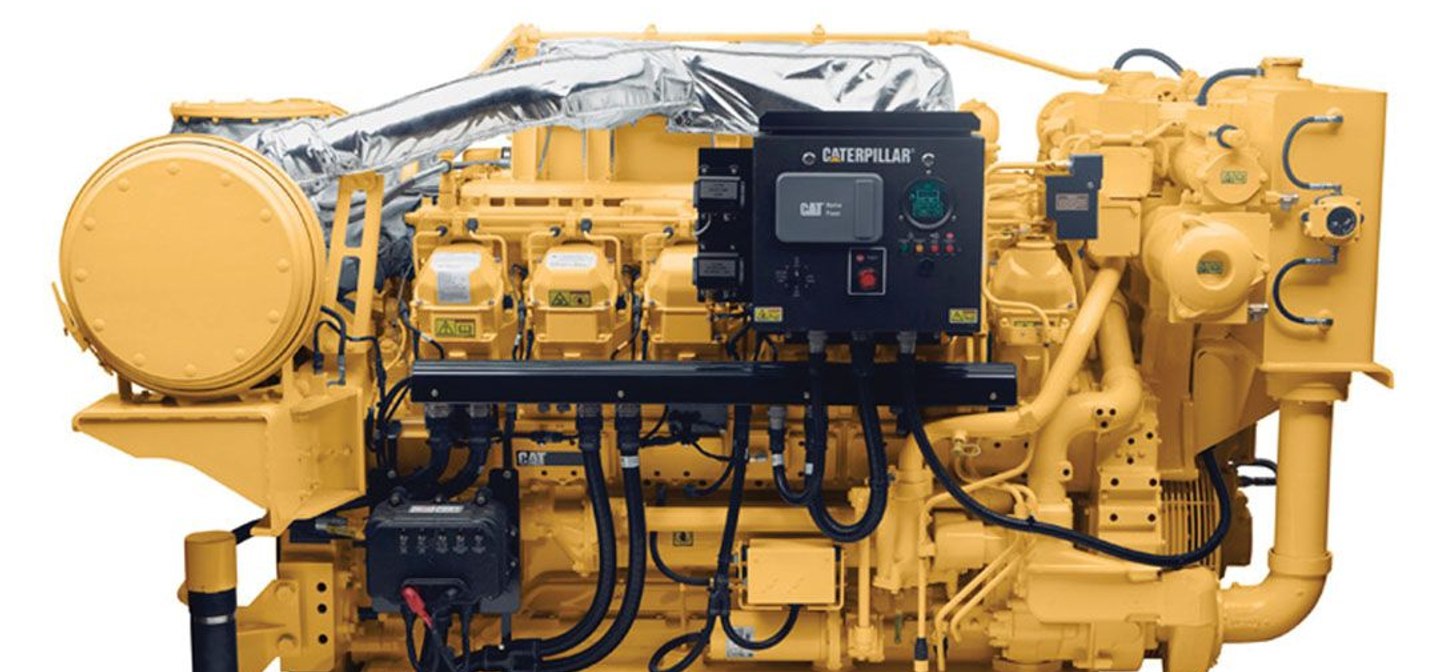

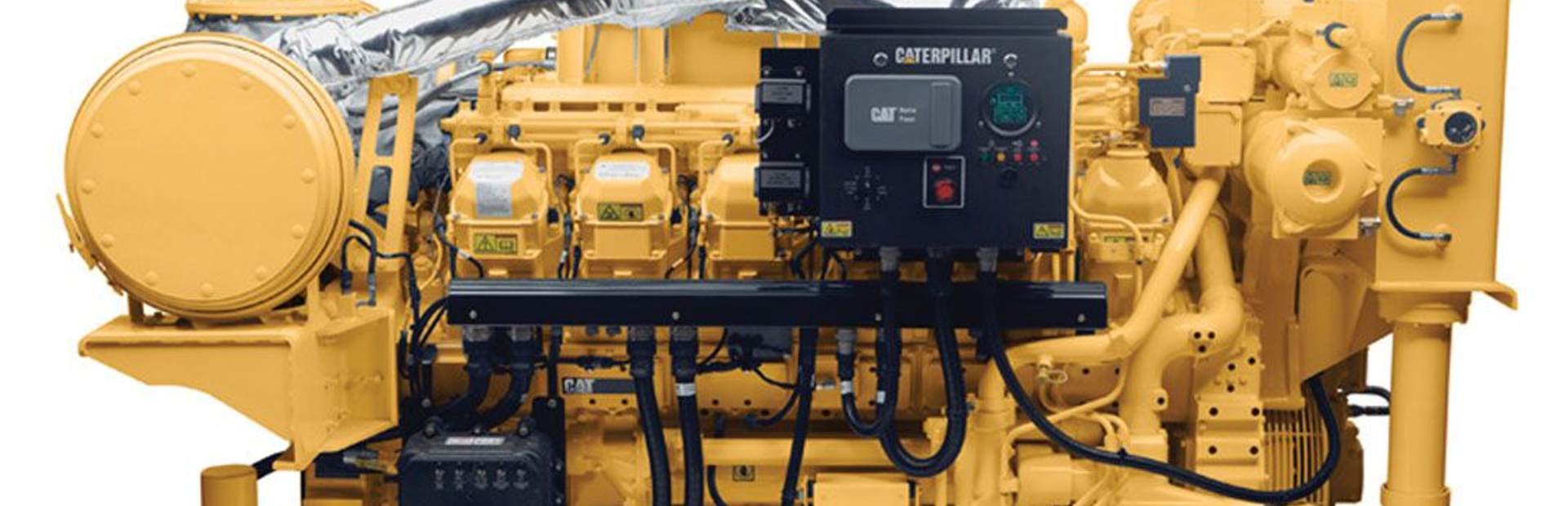

Caterpillar 3512C C07

Engine

• Model Name:
  3512C C07
• Range:
  3512
• Manufacturer:
  Caterpillar

Engine description

• No' of Cylinders:
  12
• Cylinder displacement:
  5 Litres
• Valves:
  OHV
• Flywheel housing:
  SAE 00
• Cooling system:
  Water

Performance data

• Bore
  170mm .
• Stroke
  215mm .

Combustion parameters

• Fuel consumption:
  355 Litres
• Intake air temperature:
  45℃
• Barometric pressure:
  1,000 mbar

Exhaust

• Exhaust emissions:
  IMO Tier II/EU Stage III A

Dimensions

• Height:
  2,242mm .
• Width:
  2,232mm .
• Length without gearbox:
  2,669mm .
• Total displacement:
  59 Litres
• Mass
  7,411kg

Other

• In production?
  Yes
• Solas Compliance?
  No
