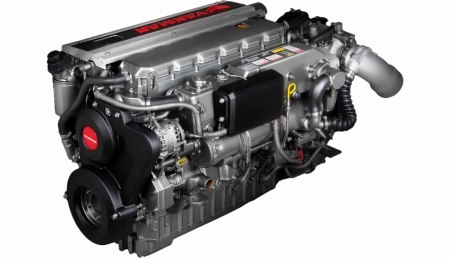

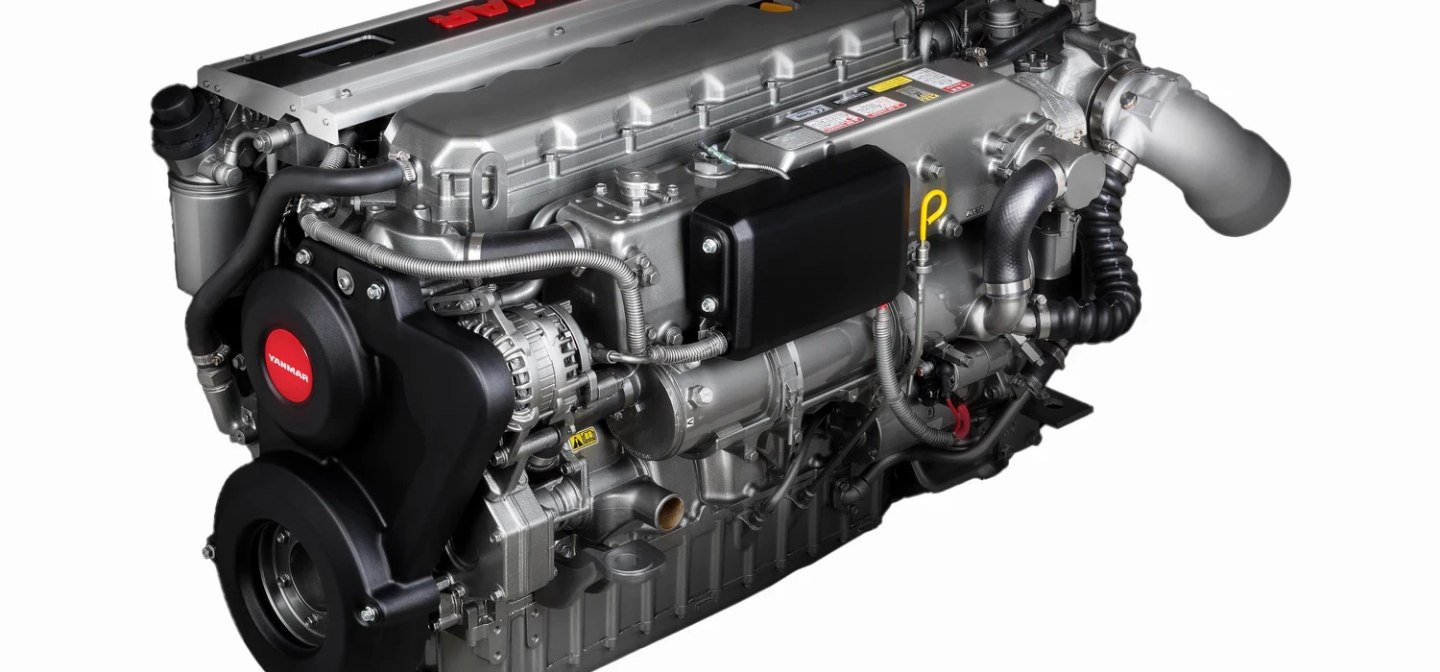

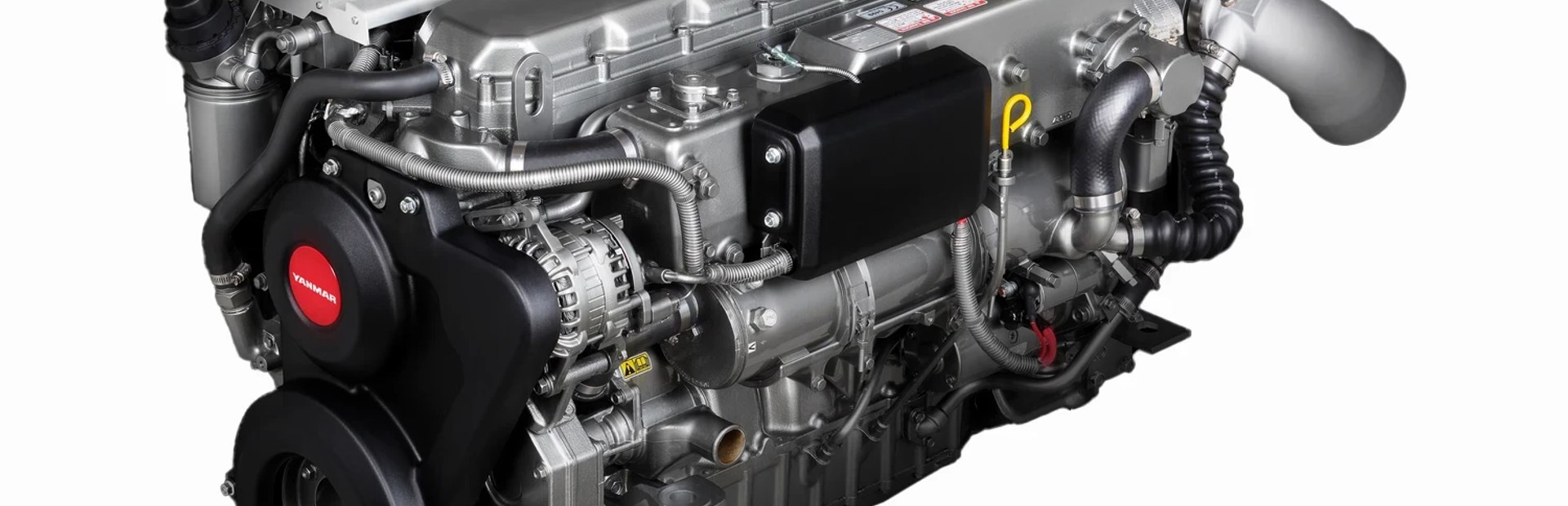

Yanmar 6LY440
Key Specifications
-
RATED OUTPUT:434 bhp / 324 KW / 440 mhp
-
RATED SPEED:Max 3,300 rpm
-
DISPLACEMENT:5.813 Litres
-
CYLINDERS:6 In-line
-
BORE & STROKE106mm bore , 110mm stroke
-
TYPE:3
-
EMISSION COMPLIANCE:Directive 2013/53/EU , EPA Tier 3 , IMO Tier II
6LY440 Full Specfications
Engine
-
Model Name:6LY440
-
Range:6LY-CR Series
-
Manufacturer:Yanmar
Engine description
-
No' of Cylinders:6
-
Cylinder displacement:1 Litres
-
Flywheel housing:SAE 3
-
Cooling system:Water
Performance data
-
Bore106mm .
-
Stroke110mm .
-
Rotation:CCW(Standard Rotation)
Exhaust
-
Exhaust emissions:IMO Tier II/EPA Tier 3/Directive 2013/53/EU
Dimensions
-
Height:757mm .
-
Width:723mm .
-
Length without gearbox:1,287mm .
-
Length with gearbox:1,440mm .
-
Total displacement:6 Litres
-
Mass585kg
Other
-
In production?Yes
