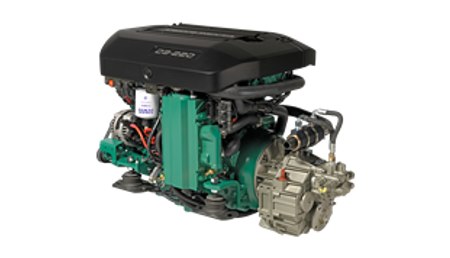

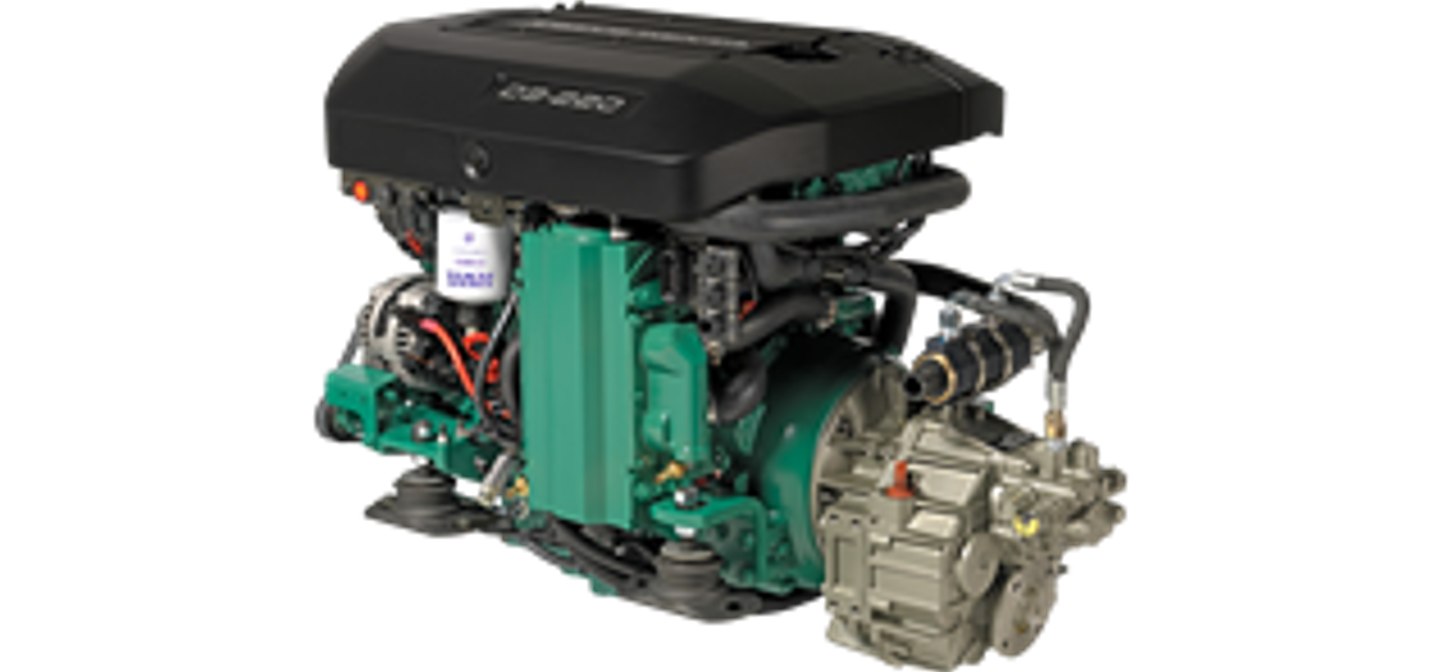

Volvo Penta D3-150
Key Specifications
-
RATED OUTPUT:148 bhp / 110 KW / 150 mhp
-
RATED SPEED:Max 3,000 rpm
-
DISPLACEMENT:2.4 Litres
-
CYLINDERS:5 In-line
-
BORE & STROKE81mm bore , 93mm stroke
-
TYPE:3
-
EMISSION COMPLIANCE:Directive 2013/53/EU , EPA Tier 3
D3-150 Full Specfications
Engine
-
Model Name:D3-150
-
Range:Inboard Shaft
-
Manufacturer:Volvo Penta
Engine description
-
No' of Cylinders:5
-
Cylinder displacement:0 Litres
-
Valves:DOHC
-
Alternator output:180 Amp
-
Gearbox model:HS45AE
-
Cooling system:Water
Performance data
-
Bore81mm .
-
Stroke93mm .
-
Transmission ratio:2.03 - 2.43
Exhaust
-
Exhaust emissions:EPA Tier 3/Directive 2013/53/EU
Dimensions
-
Height:751mm .
-
Width:572mm .
-
Length without gearbox:678mm .
-
Length with gearbox:1,009mm .
-
Total displacement:2 Litres
Other
-
In production?No
-
Solas Compliance?No
