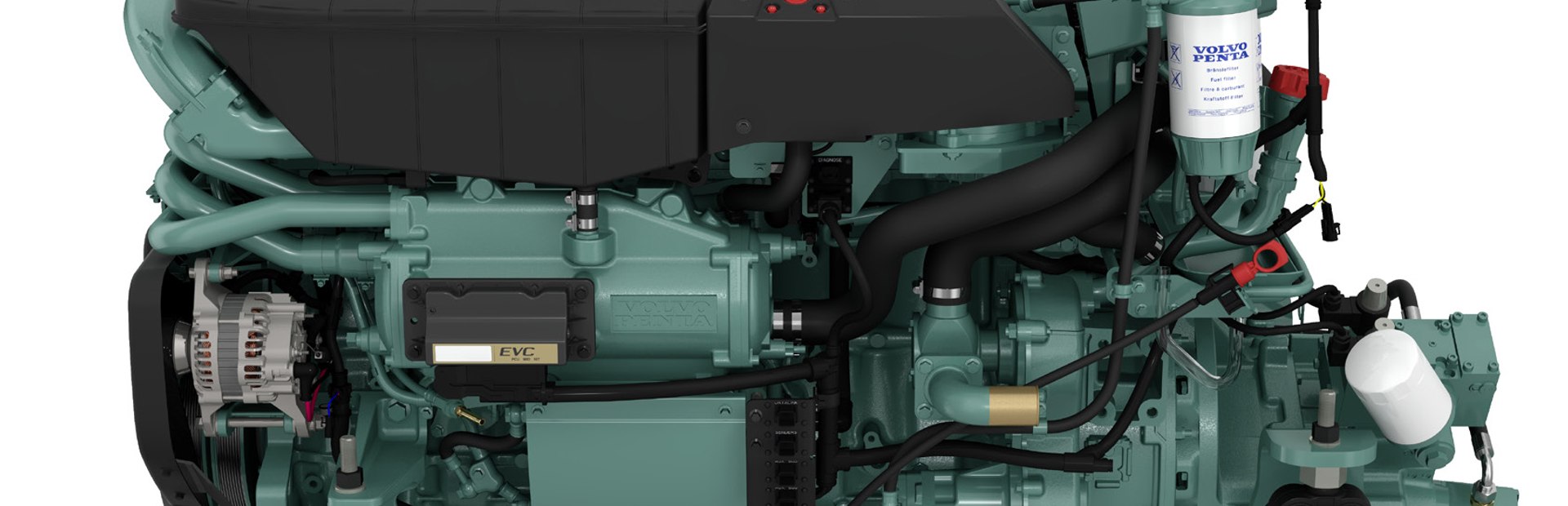

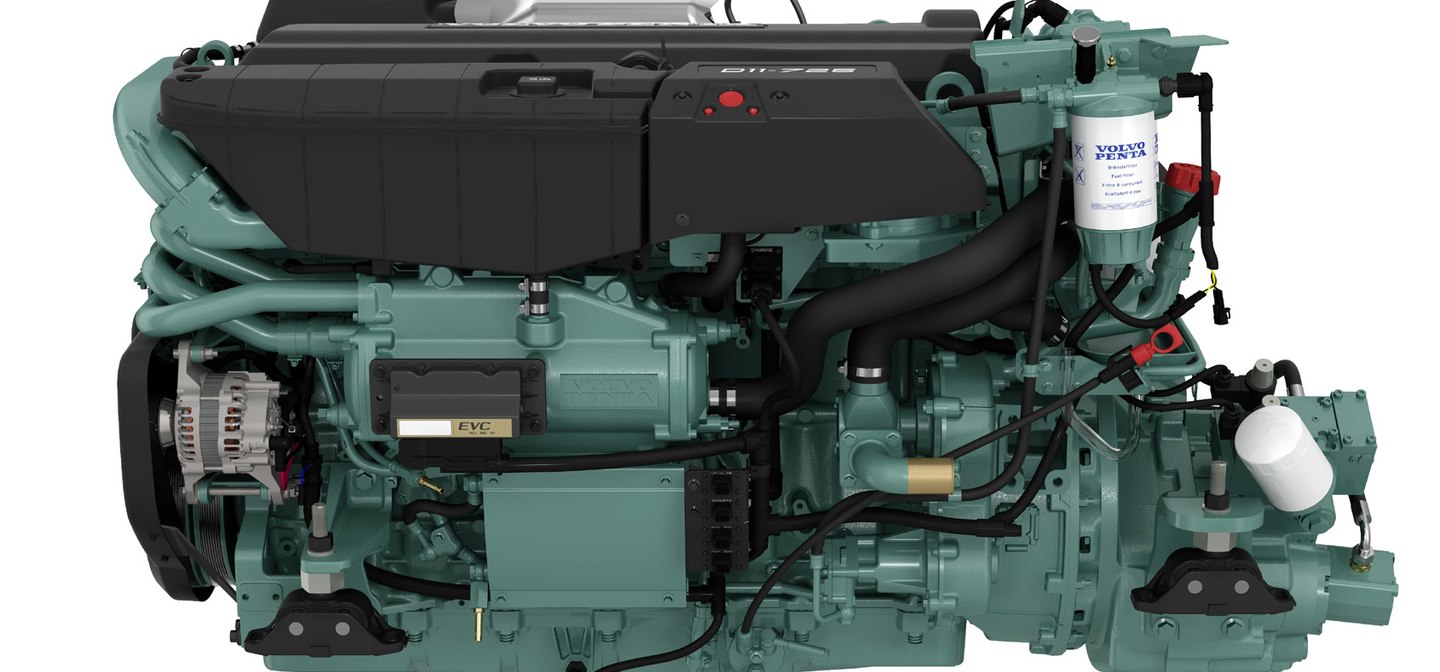

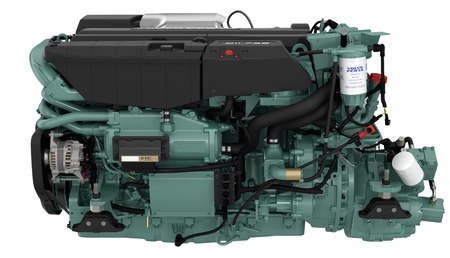

Volvo Penta D11-625

Engine

• Model Name:
  D11-625
• Range:
  Inboard Shaft
• Manufacturer:
  Volvo Penta

Engine description

• No' of Cylinders:
  6
• Cylinder displacement:
  2 Litres
• Valves:
  SOHC
• Flywheel housing:
  SAE 2
• Cooling system:
  Water

Performance data

• Bore
  123mm .
• Stroke
  152mm .
• Rotation:
  CCW(Standard Rotation)

Combustion parameters

• Fuel consumption:
  120 Litres

Exhaust

• Exhaust emissions:
  IMO NOx/EPA Tier 3

Dimensions

• Height:
  1,096mm .
• Width:
  977mm .
• Length without gearbox:
  1,309mm .
• Total displacement:
  11 Litres
• Mass
  1,145kg

Other

• In production?
  Yes
• Solas Compliance?
  No
