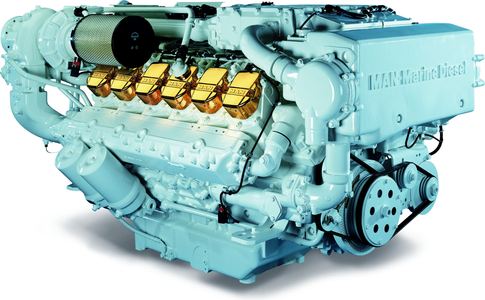

MAN V12-1360

Engine

• Model Name:
  V12-1360
• Range:
  V12
• Manufacturer:
  MAN

Engine description

• No' of Cylinders:
  12
• Cylinder displacement:
  2 Litres
• Alternator output:
  55 Amp
• Flywheel housing:
  SAE 1
• Cooling system:
  Water

Performance data

• Bore
  128mm .
• Stroke
  142mm .
• Rotation:
  CCW(Standard Rotation)

Combustion parameters

• Fuel consumption:
  263 Litres
• Intake air temperature:
  45℃
• Barometric pressure:
  1,000 mbar

Exhaust

• Exhaust emissions:
  EPA Tier 2

Dimensions

• Height:
  1,270mm .
• Width:
  1,307mm .
• Length without gearbox:
  1,846mm .
• Total displacement:
  22 Litres
• Mass
  2,000kg

Other

• In production?
  No
