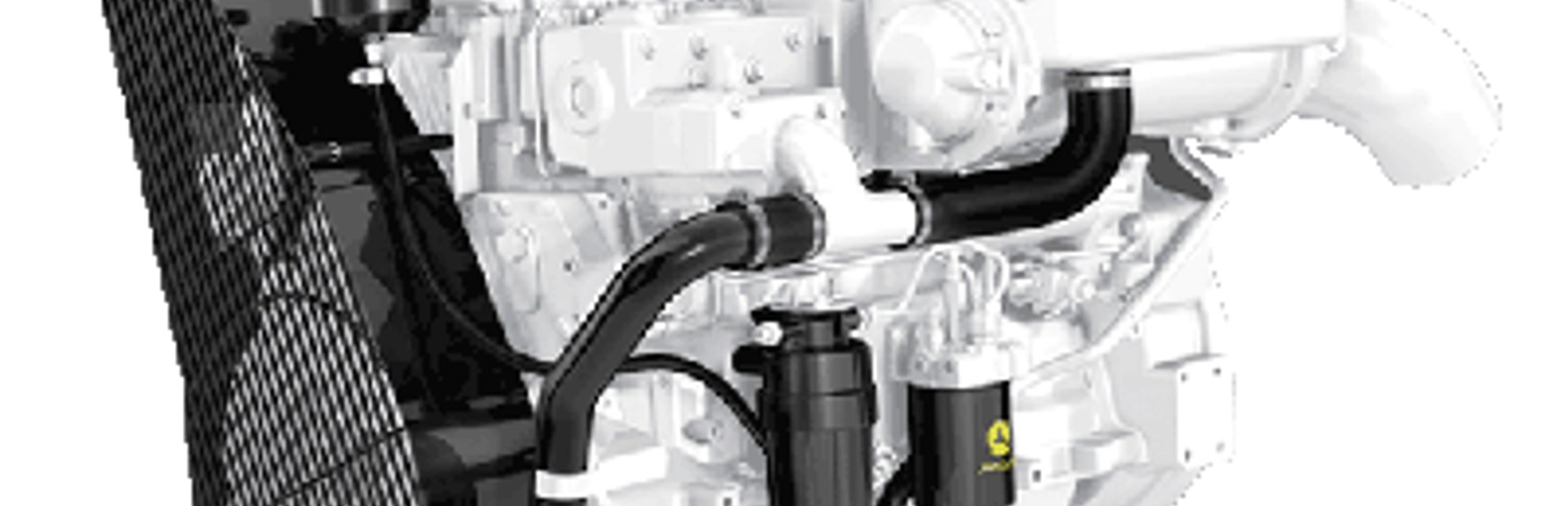

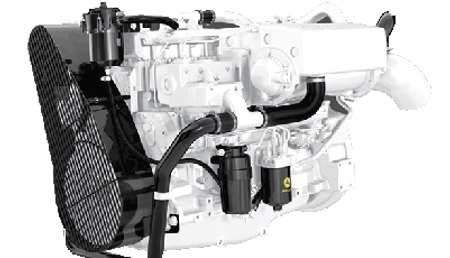

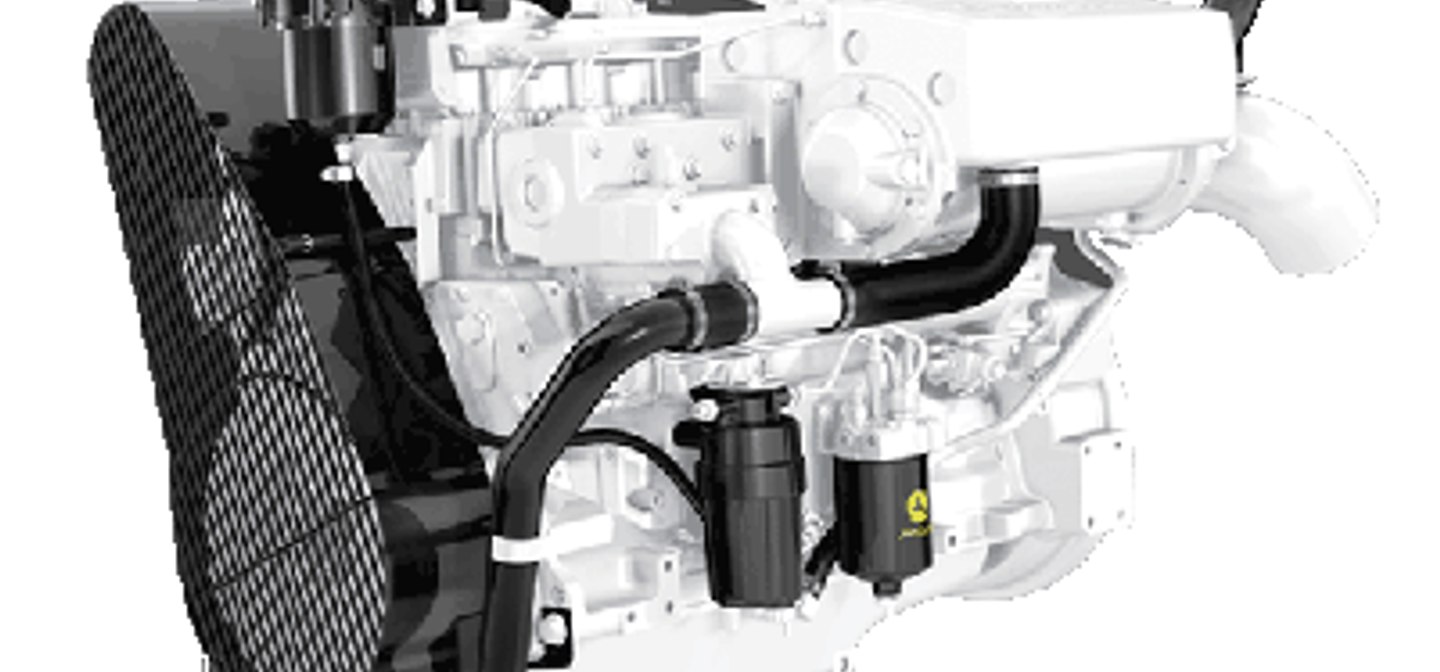

John Deere 6068SFM85 - M1

Engine

• Model Name:
  6068SFM85 - M1
• Range:
  -
• Manufacturer:
  John Deere

Engine description

• No' of Cylinders:
  6
• Cylinder displacement:
  1 Litres
• Cooling system:
  Water

Performance data

• Bore
  106mm .
• Stroke
  127mm .
• Rotation:
  CCW(Standard Rotation)

Combustion parameters

• Fuel consumption:
  51 Litres

Exhaust

• Exhaust emissions:
  IMO Tier II/EPA Tier 3/Directive 97/68/EC/Directive 2013/53/EU

Dimensions

• Height:
  938mm .
• Width:
  872mm .
• Length without gearbox:
  1,489mm .
• Total displacement:
  7 Litres
• Mass
  764kg

Other

• In production?
  Yes
