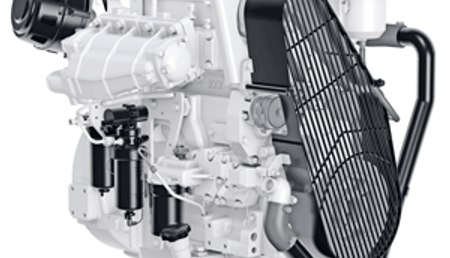

John Deere 4045AFM85 - M1

Engine

• Model Name:
  4045AFM85 - M1
• Range:
  -
• Manufacturer:
  John Deere

Engine description

• No' of Cylinders:
  4
• Cylinder displacement:
  1 Litres
• Valves:
  OHV
• Flywheel housing:
  SAE 3
• Cooling system:
  Water

Performance data

• Bore
  107mm .
• Stroke
  127mm .
• Rotation:
  CCW(Standard Rotation)

Combustion parameters

• Fuel consumption:
  33 Litres

Exhaust

• Exhaust emissions:
  IMO Tier II/EPA Tier 3/Directive 97/68/EC/Directive 2013/53/EU

Dimensions

• Height:
  964mm .
• Width:
  771mm .
• Length without gearbox:
  1,105mm .
• Total displacement:
  5 Litres
• Mass
  578kg

Other

• In production?
  Yes
