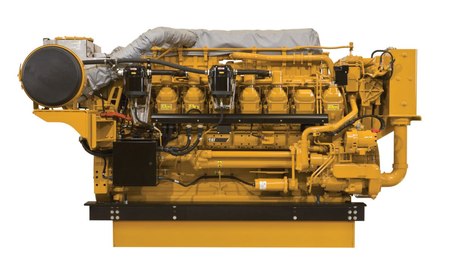

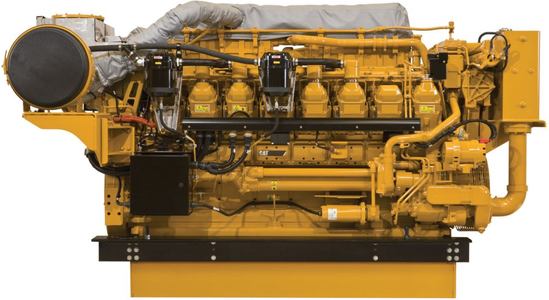

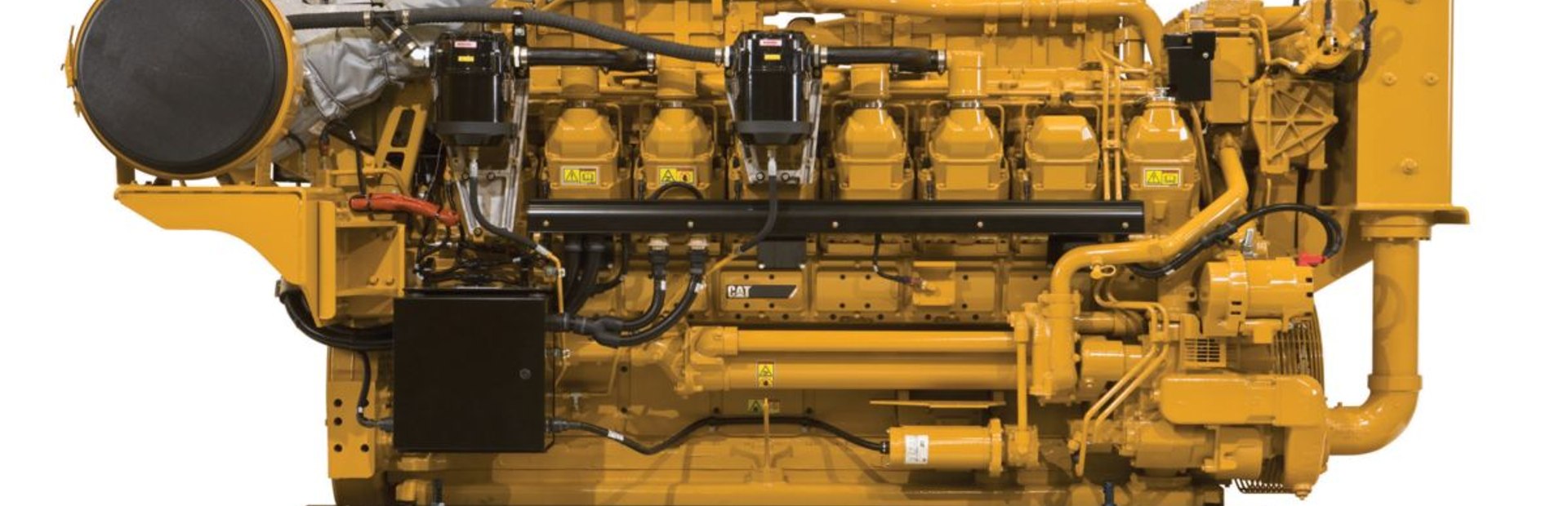

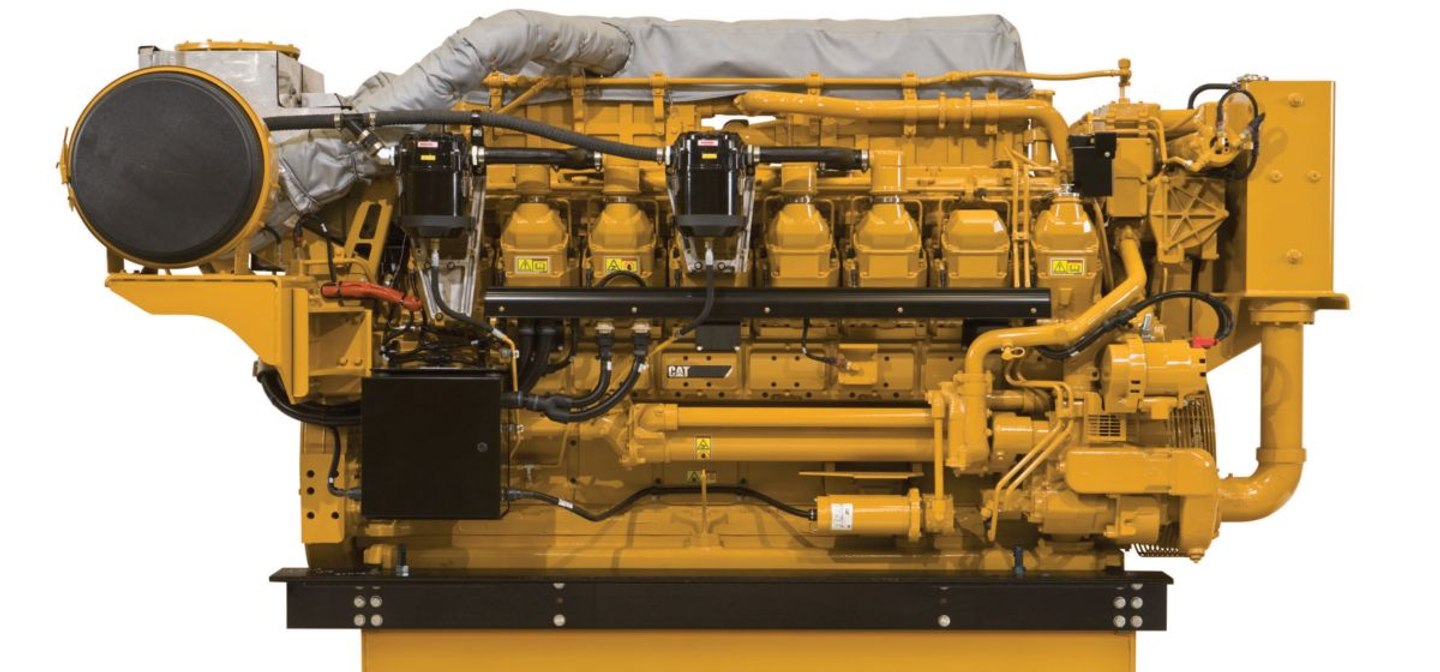

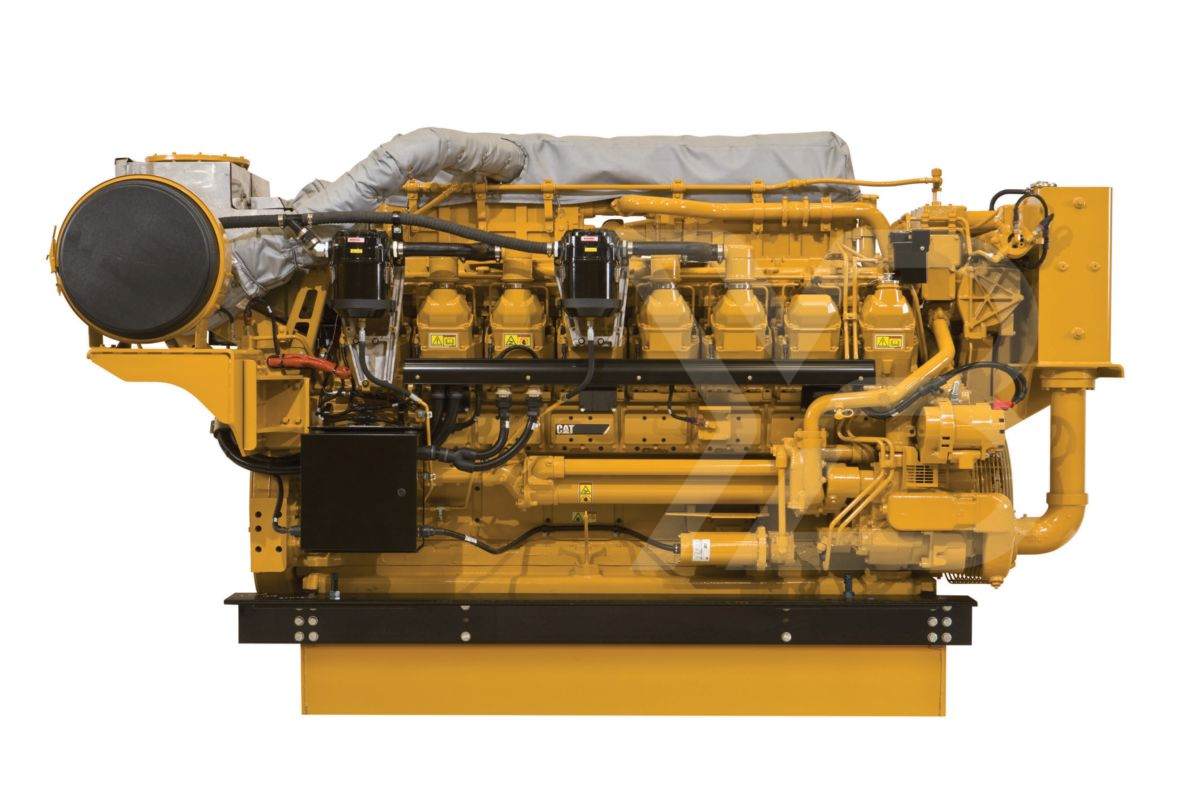

Caterpillar 3516C А02

Engine

• Model Name:
  3516C А02
• Range:
  3516
• Manufacturer:
  Caterpillar

Engine description

• No' of Cylinders:
  16
• Cylinder displacement:
  4 Litres
• Valves:
  OHV
• Flywheel housing:
  SAE 00
• Cooling system:
  Water

Performance data

• Bore
  170mm .
• Stroke
  190mm .

Combustion parameters

• Fuel consumption:
  349 Litres
• Barometric pressure:
  1,000 mbar

Exhaust

• Exhaust emissions:
  IMO Tier II

Dimensions

• Height:
  2,150mm .
• Width:
  2,142mm .
• Length without gearbox:
  3,761mm .
• Total displacement:
  69 Litres
• Mass
  7,961kg

Other

• In production?
  Yes
• Solas Compliance?
  No
